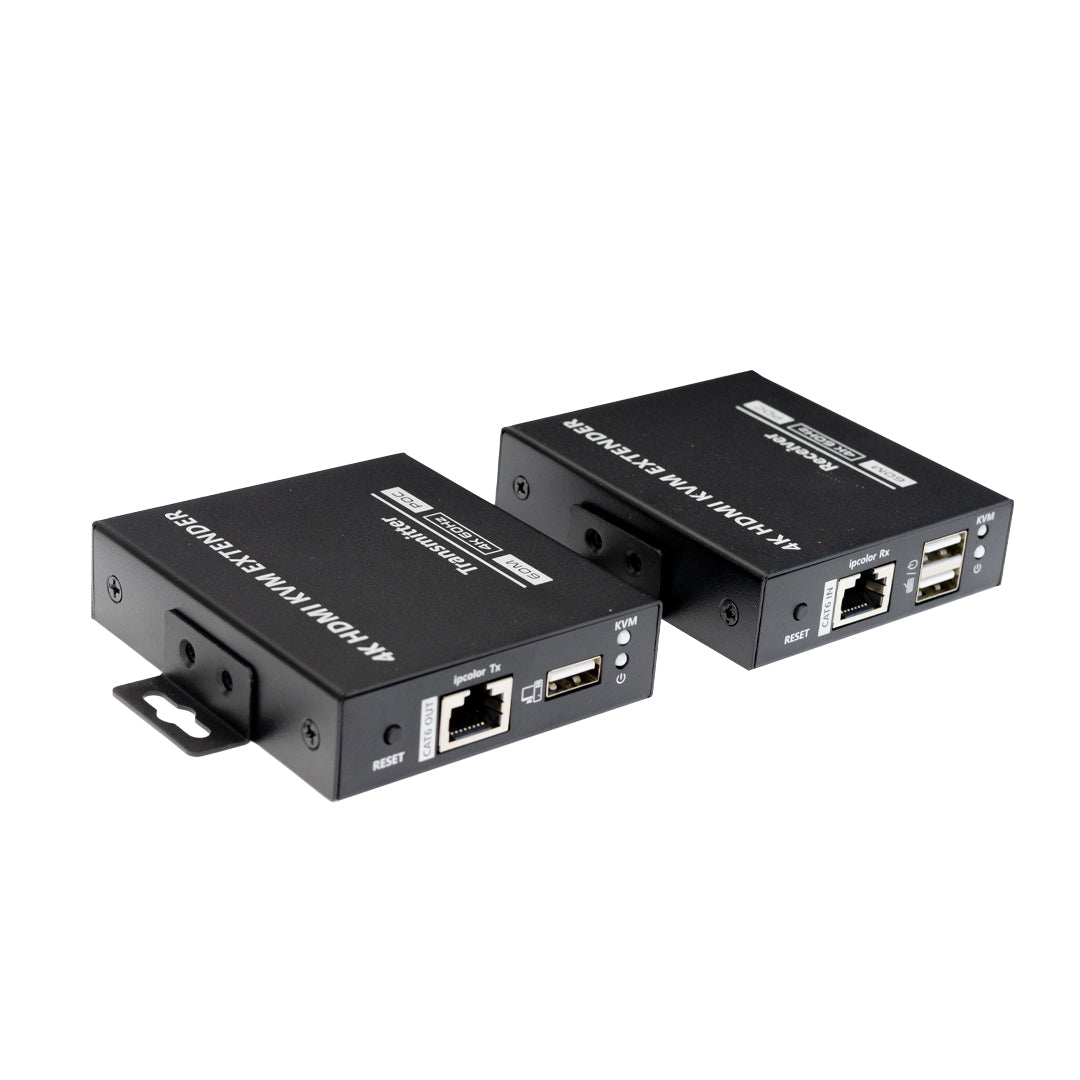

HDMI/USB KVM Extender 4K@60Hz Over CAT6/6A/7 Cable - 60M
$201.25 CAD
Sale price
$201.25 CAD
Regular price
HDMI/USB KVM Extender 4K@60Hz Over CAT6/6A/7 Cable - 60M
$201.25 CAD
Sale price
$201.25 CAD
Regular price
This KVM extender over Ethernet cable extends a HDMI monitor with max resolution of 4K@60Hz, USB keyboard & USB mouse up to 60m away from your source device using a single CAT6/6A/7 cable.
Features
- Zero-latency transmission
- Extend 4K@60Hz HDMI signal up to 60m over Cat6/6A/7 cable
- Compatible with a wider range of screen resolutions such as 3440x1440, 2560x1440, 2560x1080, 2048x1080, 1920x1440
- Support KVM function
- Support HDR10
- The transmitter supports HDMI loop out
- The receiver supports 3.5mm stereo audio output
- Support auto downscaling
- Lightning protection, surge protection, ESD protection
- Support PoC Network Cable Power Supply, Only TX Power Supply is
Needed.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 85.0(L)x75.5(W)x21.5(H)mm |
| Operating Temperature | -10 to +60℃ |
| Storage temperature |
-30℃~70℃ |
| Humidity | 0~90% RH (no condensation) |
| Power Supply | Transmitter: DC 5V/2A Receiver: PoC (Powered by TX) |
| Power Consumption | <8W |
| Protection | ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 Lightning protection, Surge protection |
| Connector(s) | |
| Transmitter | 1x HDMI IN 1x HDMI OUT 1x USB Type A 1x RJ45 |
| Receiver | 1x HDMI OUT 1x RJ45 2x USB Type A 1x 3.5mm L/R |
| Performance | |
| Video Resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 3440x1440, 2560x1440, 2560x1080, 2048x1080, 1920x1440, 1920x1200, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600 |
| Audio Support | LPCM/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos |
| Maximum transfer rate |
18Gbps |
| Transmission distance |
CAT6/6A/7 ≤ 60m |
| USB Version | USB 1.1, compatible with USB 1.0 |
| Compatibility | HDMI 2.0 HDCP 2.2 |
| Maximum HDMI Length | ≤ 5m |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.64 lbs [0.29kg] |
| Contents | |
| Included in Package | 1 - KVM Extender Transmitter Unit |
| 1 - KVM Extender Receiver Unit | |
| 1 - DC 5V/2A Power Adapter | |
| 1 - USB 2.0 Cable |
|
| 1 - User Manual | |
| 4 - Mounting ears | |
| 10 - Screws | |
