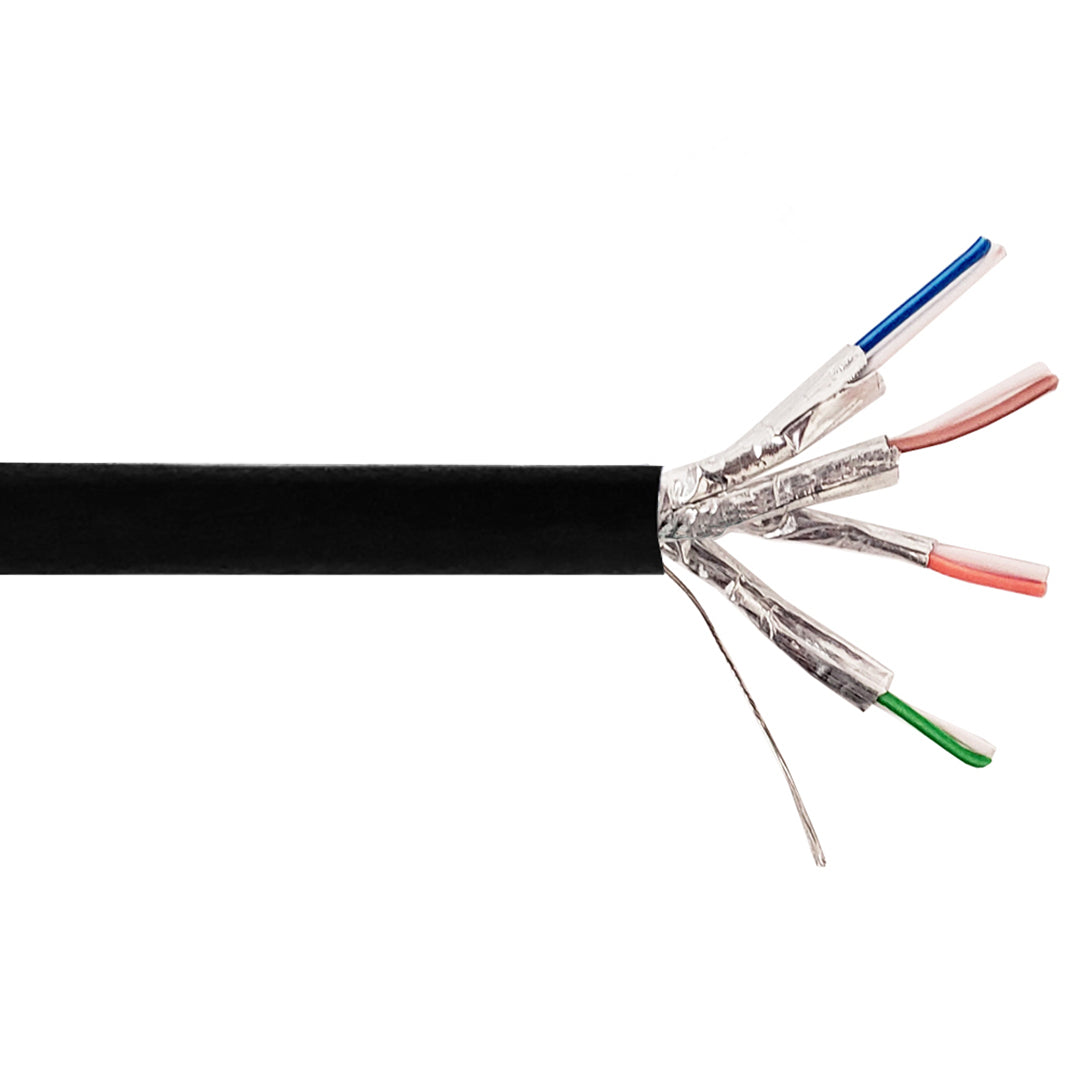

CAT6 Hi-Flex Harsh Environment 4 Pair 26AWG U/FTP Stranded Bulk Cable – PUR Jacket - BLACK - 1000ft

1000ft

$572.50 CAD

CAT6 Hi-Flex Harsh Environment 4 Pair 26AWG U/FTP Stranded Bulk Cable – PUR Jacket - BLACK - 1000ft

$572.50 CAD

Overview

This bulk Cat6 cable consists of 4 pairs of 26AWG stranded foil shielded wires with a PUR jacket. It is typically used to manufacture Cat6 patch cables which would be used in industrial, outdoor or harsh environment applications. Some usage examples would be, deployment and redeployment in Pro-AV applications, temporary outdoor event setups, staging events, permanent outdoor applications which would be exposed to the elements and industrial installs subject to chemical exposer.

Specifications

Physical Characteristics
Cable Lengths	1000ft/500ft/200ft/100ft
Conductor Material	Stranded Bare Copper
Nominal Outer Diameter	7/0.16 ± 0.008mm
Number of Pairs	4 Pairs
Color of Pairs	White-Blue White-Green White-Orange White-Brown
Wire Gauge	26AWG Stranded
Insulation	FMPE
Average Thickness	0.21mm
Insulation Diameter	1.04 ± 0.05mm
AL/Mylar	Coverage 100% Overlap 25% min.
Drain Material	TC
Drain Size	7/0.12 ± 0.008mm
Jacket Material	PUR
Jacket Average Thickness	0.6mm
Jacket Outer Diameter	6.0 ± 0.15mm
Minimum Bending Radius	15xOD in Operation 10xOD after Operation
Operating Temperature	-40ºC ~ 80ºC
Installation Temperature	-20ºC ~ 60ºC
Rated Temperature	75ºC
Electrical Characteristics
Conductor Resistance@20°C	≤178Ω/km
Resistance Unbalance@20°C	≤5%
Input Impendence	4-250MHz : 100+/-15Ω
Supported Bandwidth	250MHz
Supported Ethernet Speed	1Gbps
Approvals/Standard Reference
ISO/IEC 11801:2017	Compliant
ANSI/TIA-568.2-D	Compliant
Environmental
RoHS	Compliant
