BNC + Power Balun - 1000ft Passive Video Extender - RJ45
$12.60 CAD
Sale price
$12.60 CAD
Regular price
BNC + Power Balun - 1000ft Passive Video Extender - RJ45
$12.60 CAD
Sale price
$12.60 CAD
Regular price

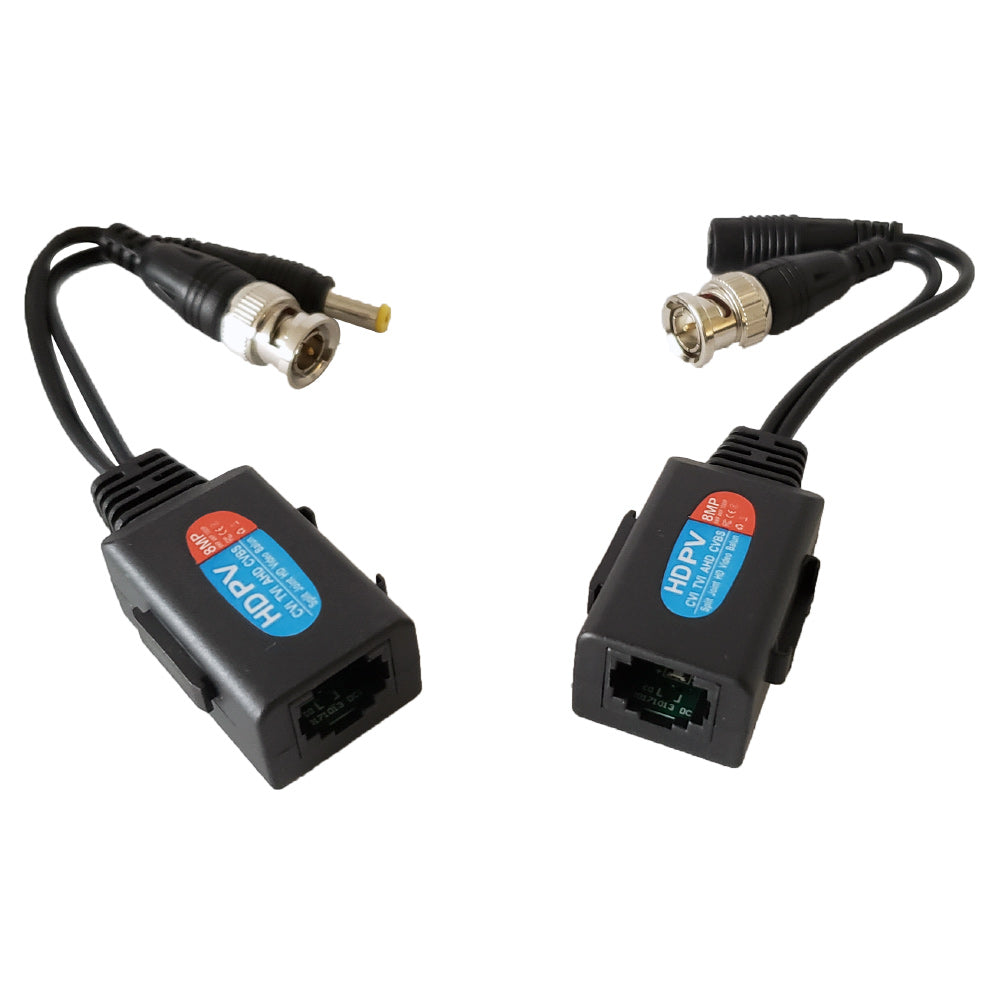

This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. The transmit unit has a BNC male connector, RJ45 female connector and female 2.1mm x 5.5mm power connector, while the receiving unit has a BNC male connector, RJ45 female connector and male 2.1mmx 5.5mm power connector. It is used to extend a BNC composite signal and power over CAT5e/CAT6 cabling.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing Material | ABS+PC |
| Operating Temperature | -10℃ - +70℃ |
| Storage Temperature | -30℃ - +70℃ |
| Humidity | 0 to 95% |
| Connectors | |
| Coaxial Video Connector | 2 - BNC Male |
| Twisted-pair Video Connector | 2 - RJ45 Female |
| Power Connector | 1 - Male Power Connector 1 - Female Power Connector |
| Impedance | 75 Ohms - BNC 100 Ohms - UTP |
| Performance | |
| Transmission Signal | 1 Channel |
| Compatible Format | HD-CVI, HD-TVI, HD-AHD |
| Supported Video Formats | NTSC/PAL/SECAM |
| Resolution | 720p/1080p/3MP/4MP/5MP/8MP |
| Transmission Distance HDCVI | UP to 200m for 1080p/3MP/4MP/5MP/8MP Up to 250m for 720p |
| Transmission Distance HDTVI | UP to 200m for 1080p/3MP/4MP/5MP/8MP Up to 250m for 720p |
| Transmission Distance AHD | Up to 200m for 1080p/3MP/4MP/5MP/8MP AHD Up to 250m for 720p/960p |
| Frequency Response | DC to 60MHz |
| Attenuation | 0.5dB type |
| Common Mode Rejection Ratio | 60dB |
| Surge Protection | 4kV |
| Electrostatic Discharge | 8kV |
| Power | Built-in Power Wire |
| Approvals | |
| CE | Yes |
| FCC | Compliant |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.1 lbs [0.1kg] |
