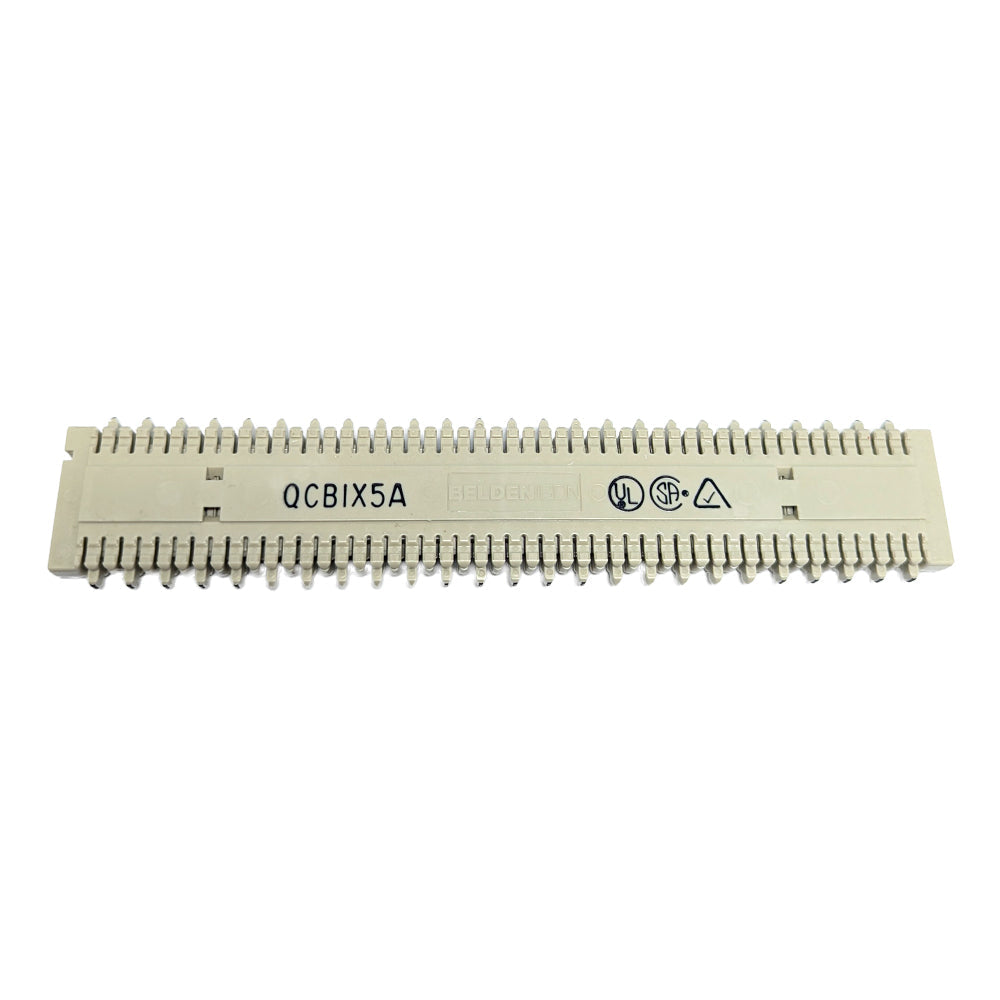

BIX Multiplying Connector, 25-pair, 5x5-pair (QCBIX5A)
$50.25 CAD
Sale price
$50.25 CAD
Regular price
BIX Multiplying Connector, 25-pair, 5x5-pair (QCBIX5A)
$50.25 CAD
Sale price
$50.25 CAD
Regular price
This bix block is built using 10 sets of bridged clips (5 clips each). It is used for multiple jumper connections to the same equipment. It is typically used in voice applications.
| Physical Characteristics | |
|---|---|
| Color | Beige |
| Dimensions (H x W x D) | 9.4 x 168.4 x 32.77 mm (0.37 x 6.63 x 1.29 in) |
| Material | fire-retardant thermoplastic rated UL94V-0 |
| Contacts | copper alloy with tin plating over nickel |
| Gas-tight connection | insulation slicing of 22, 24 and 26 AWG plastic insulated solid copper conductors |
| Durability | 200 insertions of any combination of wire gauge |
| Electrical Characteristics | |
| Dielectric strength | 1,000 V RMS at 60 Hz for 1 minute |
| Current rating | 1.5 A maximum |
| Insulation resistance | 100 MΩ minimum between clips |
| Contact resistance | 1 mΩ per contact |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| cUL | Compliant |
| CSA | Compliant |
| Packaging Information | |
| Product Weight | 0.11 lbs [0.05 kg] |
| Contents | |
| Included in Package | 1 BIX 25 Pair Block (QCBIX5A) |
