Active HDMI High Speed Cable - 4K@60Hz - 18Gbps - YUV 4:4:4 - HDR - CL3/FT4 - 10ft

10ft

$40.35 CAD

Active HDMI High Speed Cable - 4K@60Hz - 18Gbps - YUV 4:4:4 - HDR - CL3/FT4 - 10ft

$40.35 CAD

This active High-Speed HDMI® cable consists of a HDMI male connector on both ends. The cable has a built in active signal booster which allows it to maintain a HDMI 2.0 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports ultra HD resolutions up to 4k x 2k and works with splitters, switches and other video sharing devices.

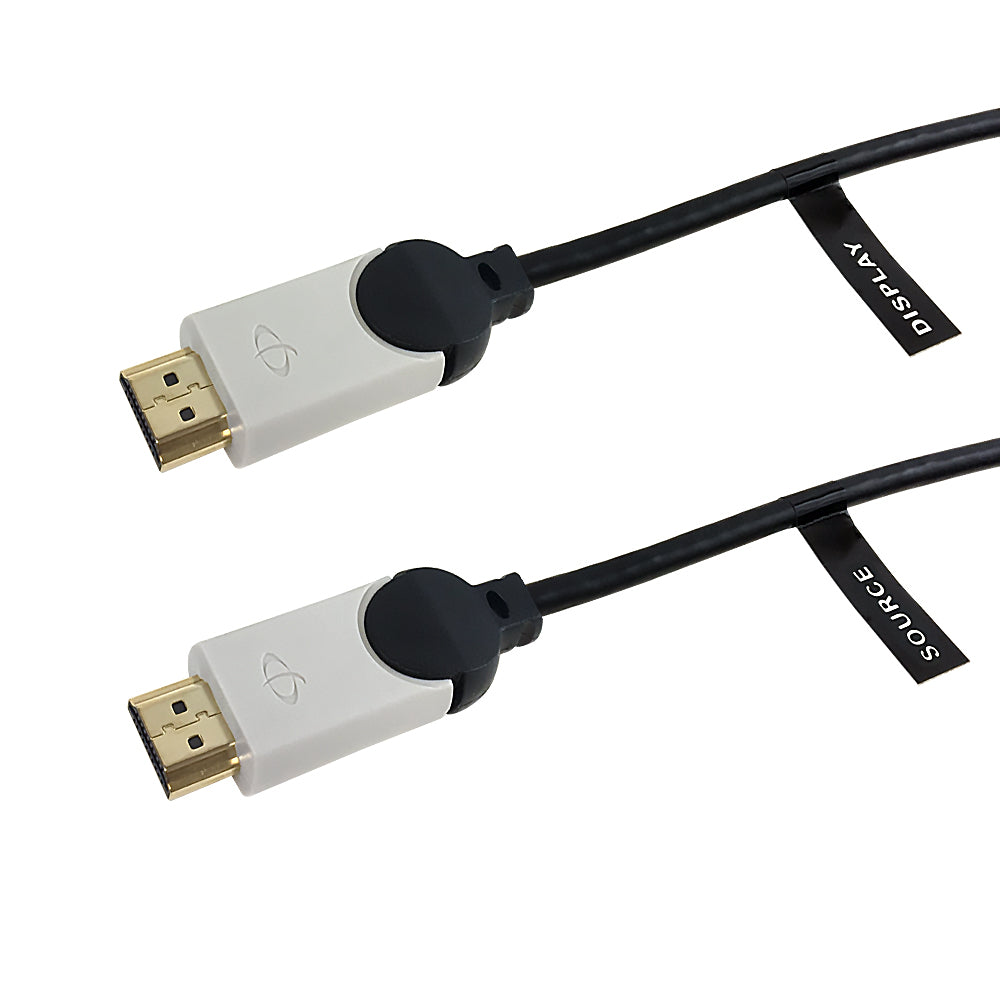

This active HDMI® cable is directional, each connector has a marking to indicate whether it should be connected to the source or the display. Always test the connection before installing the cable within a wall.

Physical Characteristics
Color	Black
Connector Plating	Gold
Cable Length	10ft	15ft	25ft	35ft	50ft
Cable Diameter	4.5mm	4.5mm	6.0mm	7.6mm	8.5mm
Wire Gauge	34AWG	34AWG	30AWG	26AWG	24AWG
Shielding	75% Braid + 100% Aluminum-Mylar Foil
Jacket Fire Rating	CL3/FT4
Jacket Material	PVC
Strain Relief	Molded PVC
Connectors
Connector A	HDMI A (19 pin) Male
Connector B	HDMI A (19 pin) Male
Performance
Resolution	Ultra HD 4k x 2k (4096 x 2160) @ 60Hz
Active Chipset Technology	Spectra® HT8181
Chroma Sampling	4:4:4
Bandwidth	18Gbps
Video	HDR, Dolby Vision and 3D Compatible
Audio	32 Channel Audio with ARC
Built in Ethernet Channel	Compliant
HDCP 2.2 Compliant	Compliant
HDMI Version	HDMI 2.0
Approvals
c(UL)us	Approved Cable
Environmental
RoHS	Compliant
Reach	Compliant
Conflict Minerals	Compliant
Packaging Information
Package Quantity	1 Cable
Warranty Information
Warranty	2 Years Warranty
