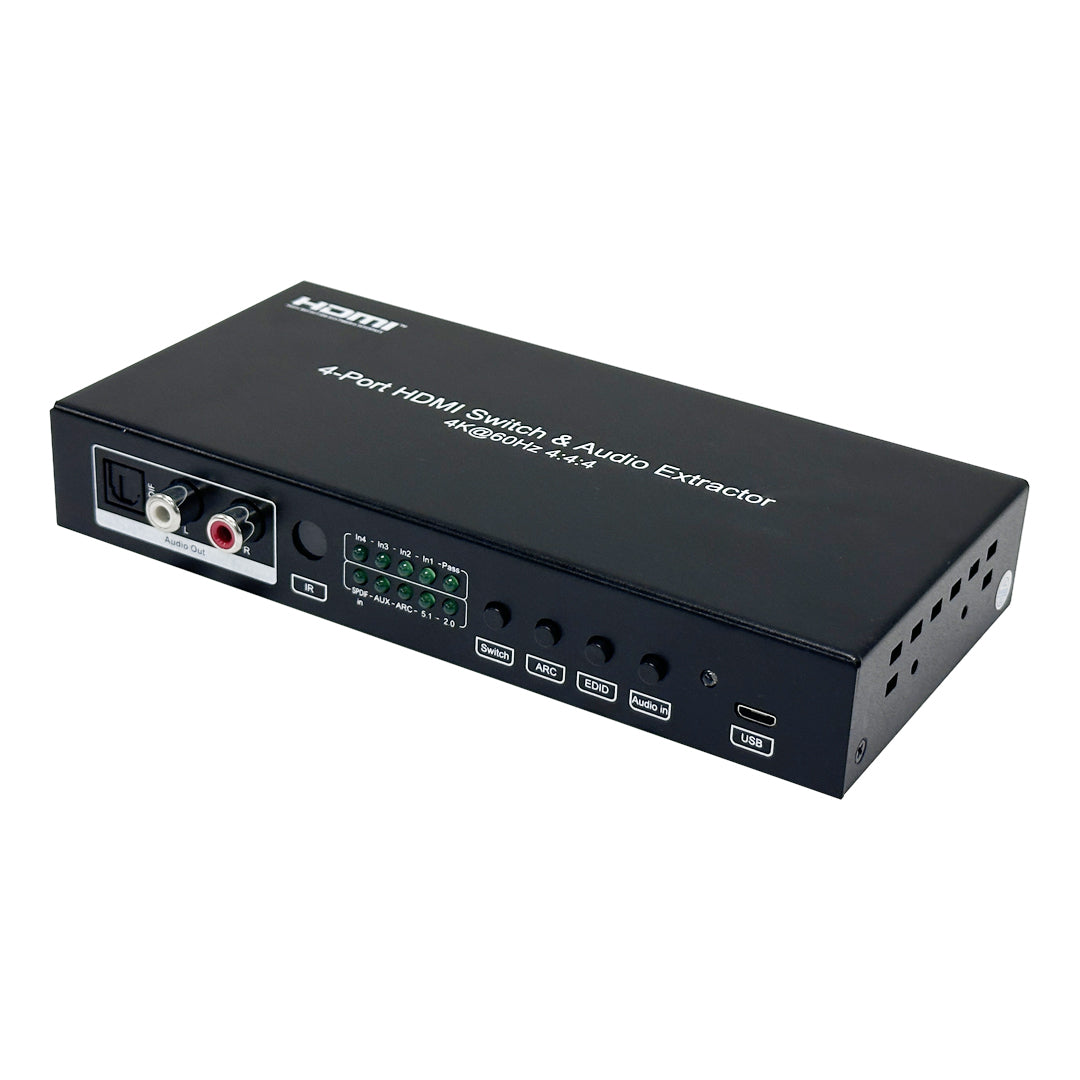

4-Port HDMI Switch 4Kx2K@60Hz - HDMI 2.0 -YUV4:4:4 -ARC CEC HDR - IR Control
$57.45 CAD
Sale price
$57.45 CAD
Regular price
4-Port HDMI Switch 4Kx2K@60Hz - HDMI 2.0 -YUV4:4:4 -ARC CEC HDR - IR Control
$57.45 CAD
Sale price
$57.45 CAD
Regular price
This HDMI switch enables you to connect up to four HDMI sources to a HDMI display. It is typically allows four HDMI sources to be routed to one display with ARC & Audio extraction & Audio Mixing.
Key Feature:
- 4 x HDMI inputs which can be switched to single HDMI output
- 1x HDMI Output with ARC (Audio Return Channel) which can be routed from the TV to Toslink or Analog Output
- Supports 4K UHD video (4K @60Hz 4:4:4)
- HDCP 2.2 compliant
- Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Control via front panel and IR (remote controller)
- Advanced EDID management
- 1x L/R analog & 1x Toslink audio Out which extract the Toslink (5.1ch) and/or Analog (2ch) (Note: Does not convert/decode Dolby Digital 5.1/7.1 HDMI audio source to 2-channel Stereo audio.)
- 1x 3.5mm & 1x Toslink Audio Mixing which Mixes external AUX Analog audio (2ch) or Digital Toslink audio (5.1) to the outgoing HDMI signal (Note: HDMI audio is no longer present in the audio mixing mode. The audio stream will come from either the AUX or Toslink input.)
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5℃ ~ +40℃ |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Power | |
| Power supply | 100-240VAC 50/60Hz input to 5VDC 1amp output |
| Barrel size | 5.5mm x 2.1mm |
| Minimum power (work under 480p60hz) |
256mA |
| Maximum power (work under 4K2K/60hz) |
383mA |
| Connector(s) | |
| Input |
4 x HDMI Female 1 x Analog Audio in 1 x SPDIF Audio in |
| Output |
1 x HDMI ARC Female 1 x SPDIF Audio out 1 x Analog Audio out |
| Performance | |
| Max Resolution | 4k@60hz YUV4:4:4 |
| Function | ARC HDR10 and CEC(only input) |
| HDMI Version | HDMI 2.0 |
| Bandwidth | 18Gbps |
| HDCP version | HDCP2.2 HDCP1.4(Auto choose depend TV version) |
| Control ways | Switch button and remoter control |
| Audio | Analog audio 2.0, SPDIF 5.1, audio extraction |
| Audio format | Dolby True HD and DTS-HD master audio(HDMI out) |
| Distance | 1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m |
| 3D Support | No |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.0 lbs [0.45kg] |
| Package Weight | 1.46 lbs [0.66kg] |
| Contents | |
| Included in Package | 1 - HDMI Switch |
| 1 - DC5V Power Adapter | |
| 1 - Manual | |
| 1 - Remote Control | |
