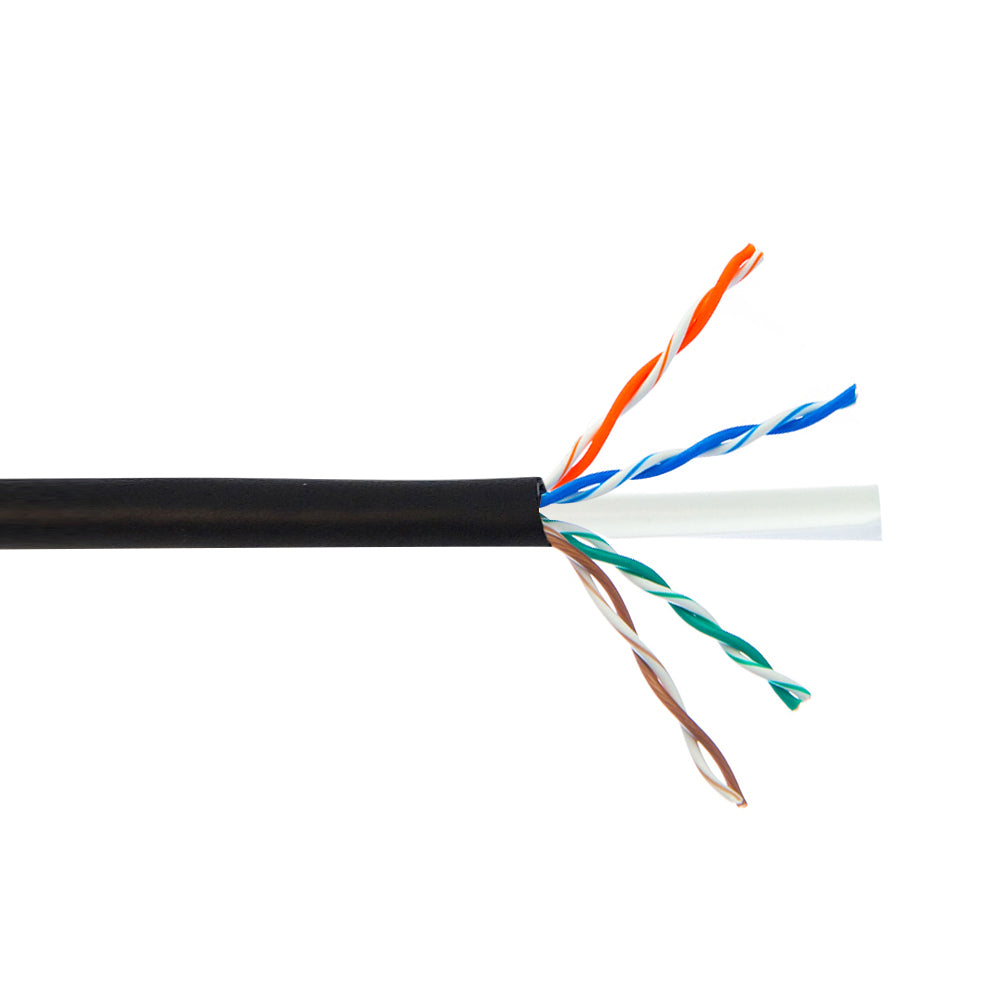

4 Pair CAT6 Solid U/UTP 550Mhz 23AWG CMR Riser Bulk Cable - 1000ft - Black

1000ft

$226.25 CAD

4 Pair CAT6 Solid U/UTP 550Mhz 23AWG CMR Riser Bulk Cable - 1000ft - Black

$226.25 CAD

This bulk CAT6 riser rated cable consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is riser (CMR) c(ETL)us listed, RoHS Compliant and meets and/or exceeds CAT6 ANSI/TIA-568.C.2 standards. It is typically used in riser environments as premise wiring and terminated from a patch panel to a Cat6 jack.

Physical Characteristics
Color	Black/Blue/Green/Grey/Orange/Purple/Red/White/Yellow
Cable Diameter	6.20 mm
Number of Pairs	4 Pairs
Wire Gauge	23AWG Solid
Conductor Material	100% Bare Copper - Oxygen-Free
Jacket Material	PVC - Polyvinyl Chloride
Bend Radius	24mm
Jacket Rating	CMR [Riser Rated]
Cable Shielding	None
Temperature Rating	-20℃ ~ +75℃
Voltage Rating	300V
Performance
Fluke® CAT6 Channel Test	Compliant
Fluke® CAT6 Permalink Test	Compliant
Fluke® CAT6 Patch Cable Test	Compliant
Frequency	550 MHz
PoE Compliance
PoE / IEEE 802.3af Type 1	15.4W (37-57V)
PoE+ / IEEE 802.3at Type 2	30W (42.5-57V)
PoE++ / IEEE 802.3bt Type 3	60W (42.5-57V)
4PPoE / IEEE 802.3bt Type 4	100W (41.1-57V)
Approvals
c(ETL)us	Compliant
ISO/IEC 9001	Compliant
ANSI/TIA-568.C.2	Compliant
NEC Compliance	Article 800 CMR
Flammability Standard Compliance	Communications Cables (R2021) [CSA C22.2#214:2017 Ed.8+U1;U2] Communications Cables [UL 444:2017 Ed.5+R:16Jun2021]
TIA/EIA Compliance	ANSI/TIA 568.C.2 ANSI/TIA 568.D
ISO/IEC Compliance	ISO/IEC 11801-1 IEC61156-5
Environmental
RoHS	Compliant
Conflict Minerals Compliant	Compliant
Warranty Information
Warranty	25 year
Packaging Information
Package Quantity	1
Cable Length Product Weight	1000ft [305m] 33.5 lbs [15.2kg]	200ft [61m] 5.63 lbs [2.55kg]	100ft [30.4m] 2.82 lbs [1.28kg]	50ft [15.2m] 1.41 lbs [0.64kg]
