3m LC/APC 12-Fiber OS2 Singlemode Simplex 9 micron - 900um Jacketed Pigtail - 19inch Fan-Out - OFNR
$42.67 CAD
Sale price
$42.67 CAD
Regular price
3m LC/APC 12-Fiber OS2 Singlemode Simplex 9 micron - 900um Jacketed Pigtail - 19inch Fan-Out - OFNR
$42.67 CAD
Sale price
$42.67 CAD
Regular price

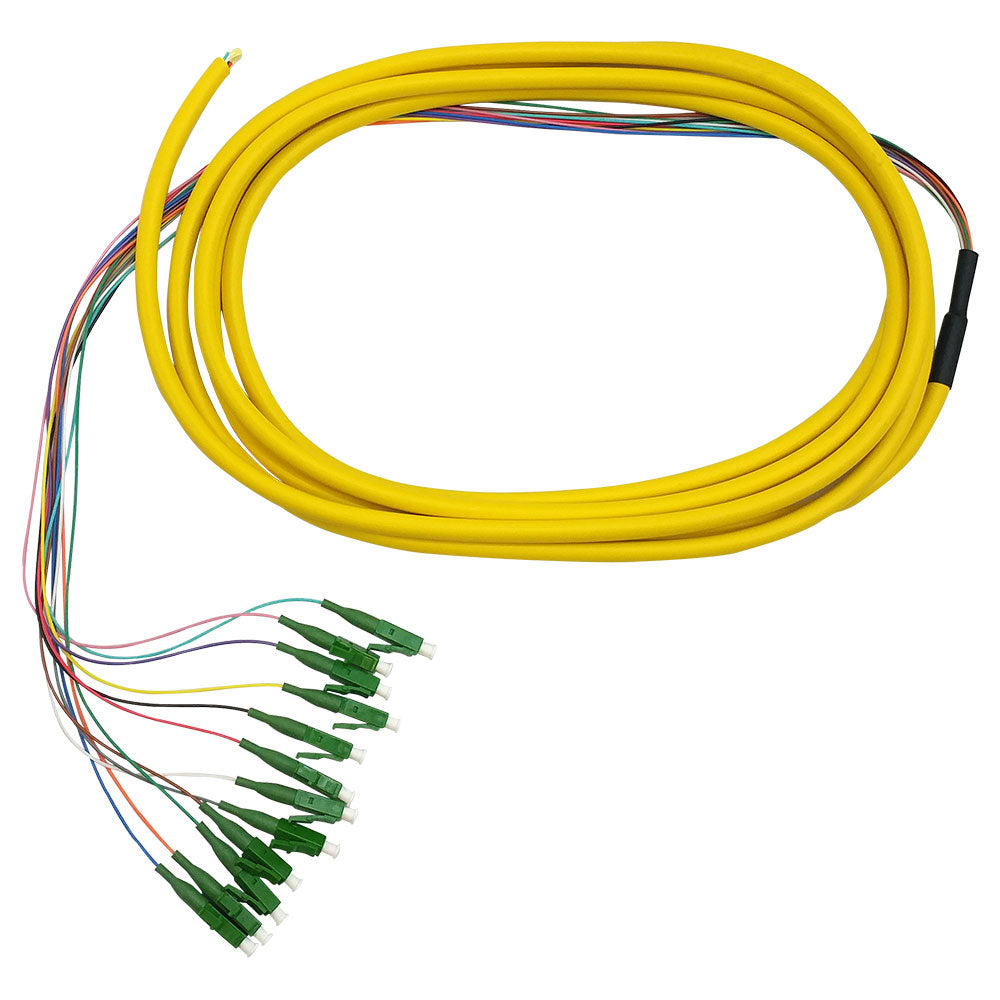

These 9 micron (OS2) fiber optic jacketed pigtails have terminated LC fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.
Physical Characteristics | |
|---|---|
| Cable Length | 3m [9.84 foot] |
| Color | Yellow |
| Cable Diameter | 6.2mm |
| Sub-Unit Diameter | 900 micron |
| Fiber Size | 9/125 micron |
| Fiber Type | Singlemode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OS2 |
| Jacket Rating | Riser OFNR |
Connector(s) | |
| Connector A | 1 - LC/APC Simplex Male |
| Connector B | Un-Terminated |
Performance | |
| Insertion Loss | ¹0.3db @ 1550nm |
| Return Loss | €°¥60db |
| Speed | 10 Gbps |
| Endface Geometry | 100% Interferometer Tested |
Environmental | |
| RoHS | Compliant |
| Conflict Minerals | Compliant |
Packaging Information | |
| Package Quantity | 1 Cable |
| Product Weight | 0.20 lbs [0.09kg] |
Warranty Information | |
| Warranty | Limited Lifetime |
