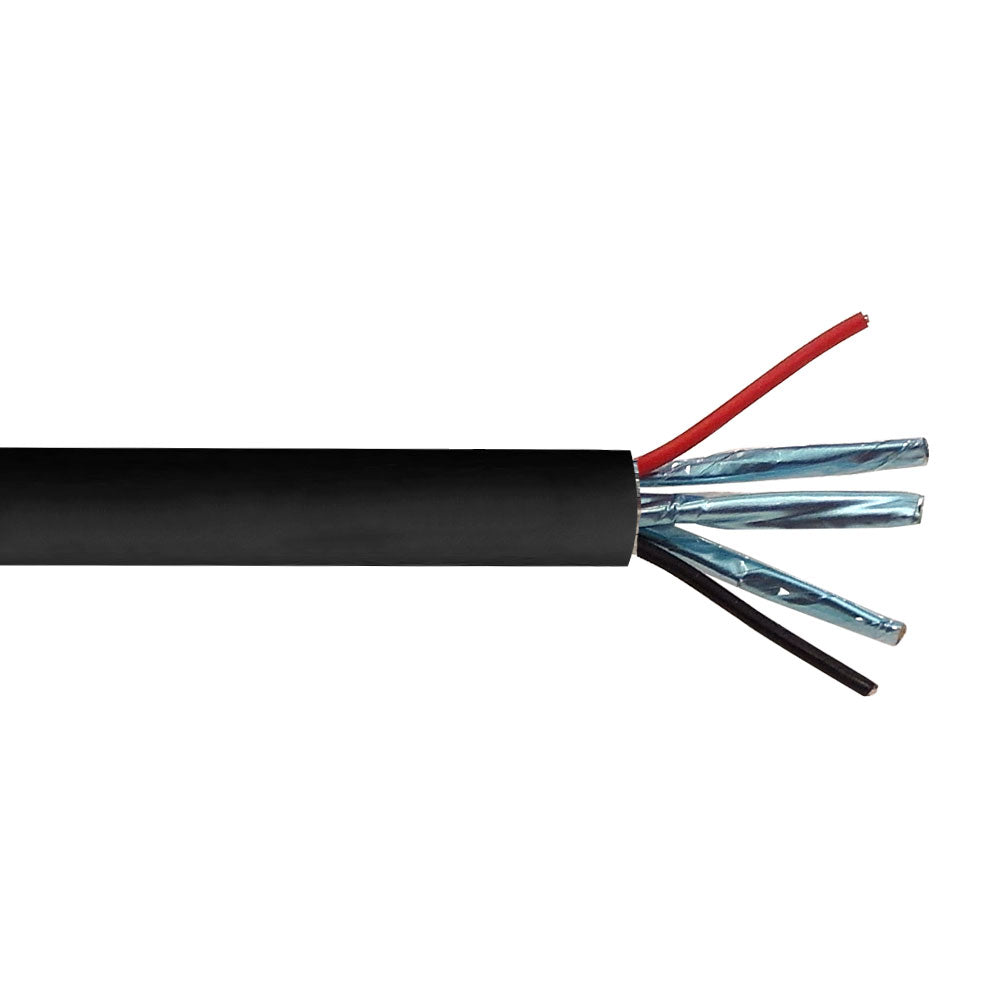

1000ft USB Cable - 3Pr 28AWG + 2C 24AWG, 5.5MM OD - Black
$257.50 CAD
Sale price
$257.50 CAD
Regular price
1000ft USB Cable - 3Pr 28AWG + 2C 24AWG, 5.5MM OD - Black
$257.50 CAD
Sale price
$257.50 CAD
Regular price
This USB 3.0 bulk cable consists of 3 pair of 28 gauge data wires and 2 conductors of 24 gauge power wires, is black in color and 1000 feet in length. It is typically used to manufacture USB cable assemblies.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 ft (305m) |
| Color | Black |
| Cable Diameter | 5.5mm |
| Number of Pairs | 3 Pairs |
| Color of Pairs | 1P. Blue & Yellow 2P. Purple & Orange 1.White 2.Green 3.Red 4.Black |
| Wire Gauge | 2pr 28AWG + 2C 24AWG |
| Temperature Rating | 80℃ |
| Jacket Material | PVC |
| Jacket Average Thickness | 0.45mm |
| Cable Shielding | Braid + Foil Shield |
| Insulation Material | Pair A: PE Pair B: PE Pair C: HDPE |
| Insulation Avg Thickness | Pair A: 0.23mm Pair B: 0.23mm Pair C: 0.18mm |
| Insulation Diameter | Pair A: 0.90±0.05mm Pair B: 0.90±0.05mm Pair C: 1.00±0.05mm |
| Conductor & Drain Construction | 7/0.127±0.005mm |
| Conductor & Drain Material | Pair A: Tinned Copper |
| Conductor Cabling OD |
Pair A: 0.38mm Pair B: 0.38mm Pair C: 0.6mm |
| Assemble Cabling OD (mm) | 3.80(ref) + filler |
| Braid Construction | 16/8/0.120±0.005mm |
| Braid Material | Aluminum Magnesium Alloy Wire |
| Braid Coverage | 85% |
| Aluminum | Constructive Side: Outside/Overlap 25 |
| Electrical Characteristics | |
| Voltage Rating | 30V |
| Insulation Resistance | 100M (ohms*km min at 20℃) |
| Conductor Resistance | 239 (ohms/km max at 20℃#28) 94.2 (ohms/km max at 20℃#24) |
| Characteristic Impedance | 90±7ohm(TDR) |
| Intra-Pair Skew | 15ps/m |
| Attenuation | 0.1GHz < 1.5; 1.25GHz < 5; 2.5GHz < 7.5; 7.5GHz < 25 |
| Flame Test | VW-1 |
| Before Aging | Tensile Strength: >=1.05kgf/mm² Elongation: >100% |
| After Aging | Tensile Strength: >70% Elongation: >=65% |
| Performance | |
| USB Standard | USB 3.0 |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 26.18 lbs [11.7kg] |
