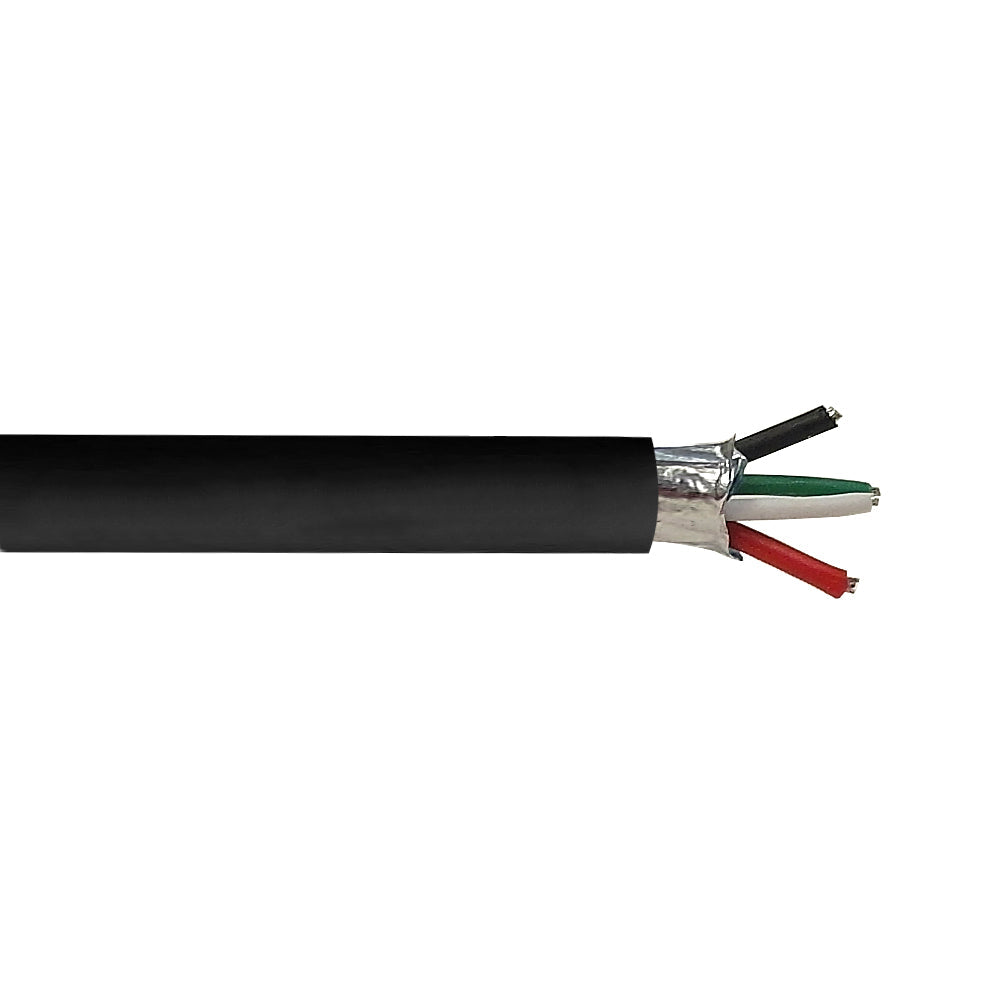

1000ft USB Cable - 1Pr 28AWG + 2C 24AWG, 4.5MM OD - Black

Black

$155.00 CAD

1000ft USB Cable - 1Pr 28AWG + 2C 24AWG, 4.5MM OD - Black

$155.00 CAD

This USB 2.0 bulk cable consists of 1 pair of 28 gauge data wires and 2 conductors of 24 gauge power wires, is black in color and 1000 feet in length. It is typically used to manufacture USB cable assemblies.

Physical Characteristics
Cable Length	1000 ft (305m)
Color	Black/White
Cable Diameter	4.5mm +/- 0.15
Wire Gauge	1pr 28AWG + 2C 24AWG
Temperature Rating	80℃
Jacket Material	PVC
Jacket Average Thickness	0.6mm
Cable Shielding	Braid + Foil Shield
Insulation Material	HDPE Pair: White / Green Conductors: Red / Black
Insulation Avg Thickness	Pair: 0.21mm Conductors: 0.18mm
Insulation Diameter	Pair: 0.84±0.05mm Conductors: 1.00±0.05mm
Conductor & Drain Construction	7/0.127±0.005mm
Conductor & Drain Material	Tinned Copper
Conductor Cabling OD	Pair: 0.38mm Conductors: 0.6mm
Assemble Cabling OD (mm)	2.50(REF)
Braid Construction	Aluminum Magnesium Alloy Wire
Braid Coverage	65%
Aluminum	Constructive Side: Outside/Overlap 25
Before Aging	Tensile Strength: >=1.05kgf/mm² Elongation: >100%
After Aging	Tensile Strength: >70% Elongation: >=65%
Flame Test	VW-1
Electrical Characteristics
Voltage Rating	30V
Insulation Resistance	100M (ohms*km min at 20℃)
Conductor Resistance	239 (ohms/km max at 20℃#28) 94.2 (ohms/km max at 20℃#24)
Characteristic Impedance	90±13.5ohm(TDR)
Intra-Pair Skew	100ps/cable
Performance
USB Standard	USB 2.0
Environmental
RoHS	Compliant
Packaging Information
Package Quantity	1
Product Weight	20.9 lbs [9.5 kg]
