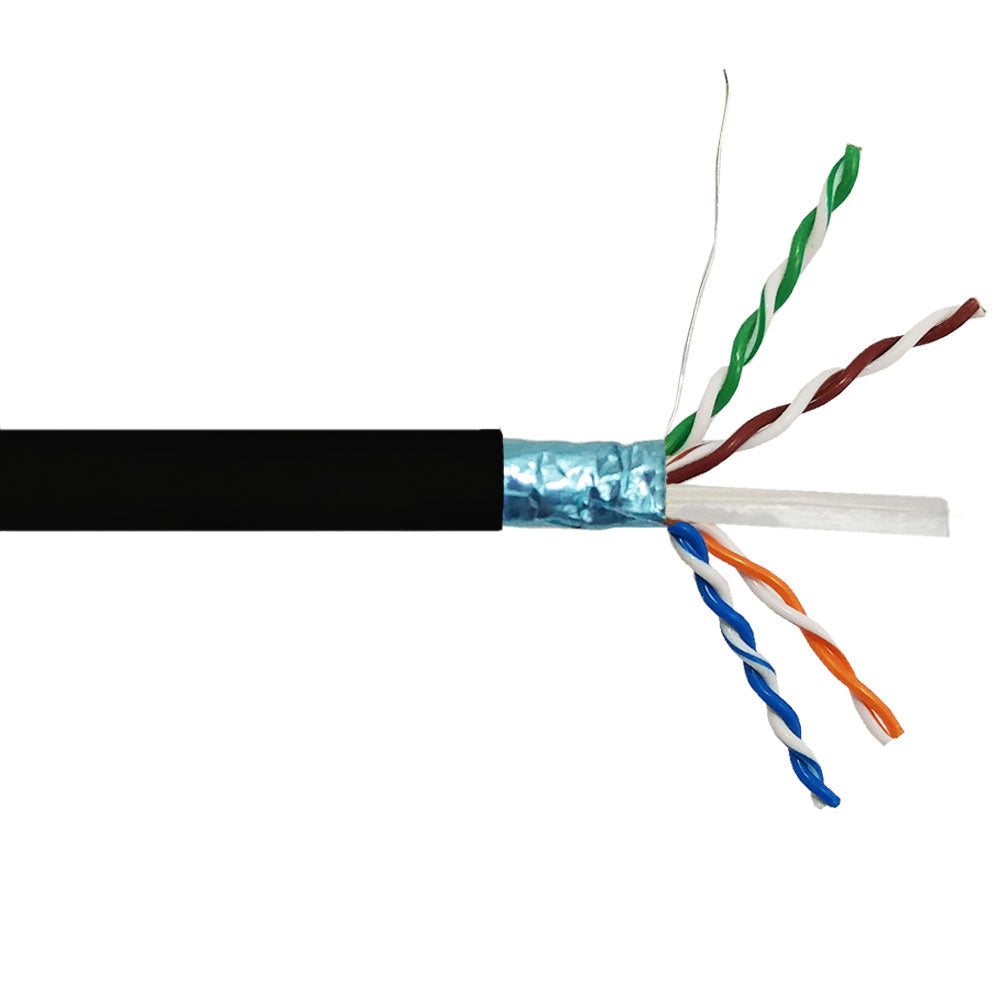

1000ft CAT6A Solid Shielded F/UTP 650MHz 23AWG CMP Plenum Bulk Cable - Black

Black

$685.00 CAD

1000ft CAT6A Solid Shielded F/UTP 650MHz 23AWG CMP Plenum Bulk Cable - Black

$685.00 CAD

This bulk plenum rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6a jack.

Physical Characteristics
Cable Length	1000 foot [305m]
Color	Black / Blue / White
Number of Pairs	4 Pairs 1.Brown * White/Brown 2.Blue * White/Blue 3.Orange * White/Orange 4.Green * White/Green
Wire Gauge	23 AWG Solid
Conductor Material	100% Bare Copper
Conductor Size	0.023 inches [0.585±0.006mm]
Insulation Outer Diameter	0.044 inches [1.12±0.05mm]
Tape Drain Wire	24AWG Solid Tinned Copper
Jacket Material	PVC - Polyvinyl Chloride
Jacket Nominal Thickness	0.0197 inches [0.50mm]
Jacket Outer Diameter	0.2756±0.012 inches [7.0±0.3mm]
Jacket Rating	CMP/FT6 [Plenum Rated]
Cable Shielding	Aluminum/Poly Tape 100% coverage with 25% overlapping
Separator	SAMP® FEP CROSSWEB
Ripcord	Kevlar
Temperature Rating	-20℃ ~ +80℃
Electrical Characteristics
Voltage	30V
Capacitance	5.6nF/100m .Nom
Characteristic Impedance	1-100MHz,100±15%;101-250MHz,100±22%;251-550MHz,100±25%
Velocity of Propagation	≥65%
DCR Conductor	9.38 Ohms/100m.Nom
D-C Resistance Unbalance	≦5%
PoE Compliance
PoE / IEEE 802.3af Type 1	15.4W (37-57V)
PoE+ / IEEE 802.3at Type 2	30W (42.5-57V)
PoE++ / IEEE 802.3bt Type 3	60W (42.5-57V)
4PPoE / IEEE 802.3bt Type 4	100W (41.1-57V)
Approvals
c(UL)us	Compliant
Environmental
RoHS	Compliant
Packaging Information
Package Quantity	1
Product Weight	46.18 lbs [20.8kg]
