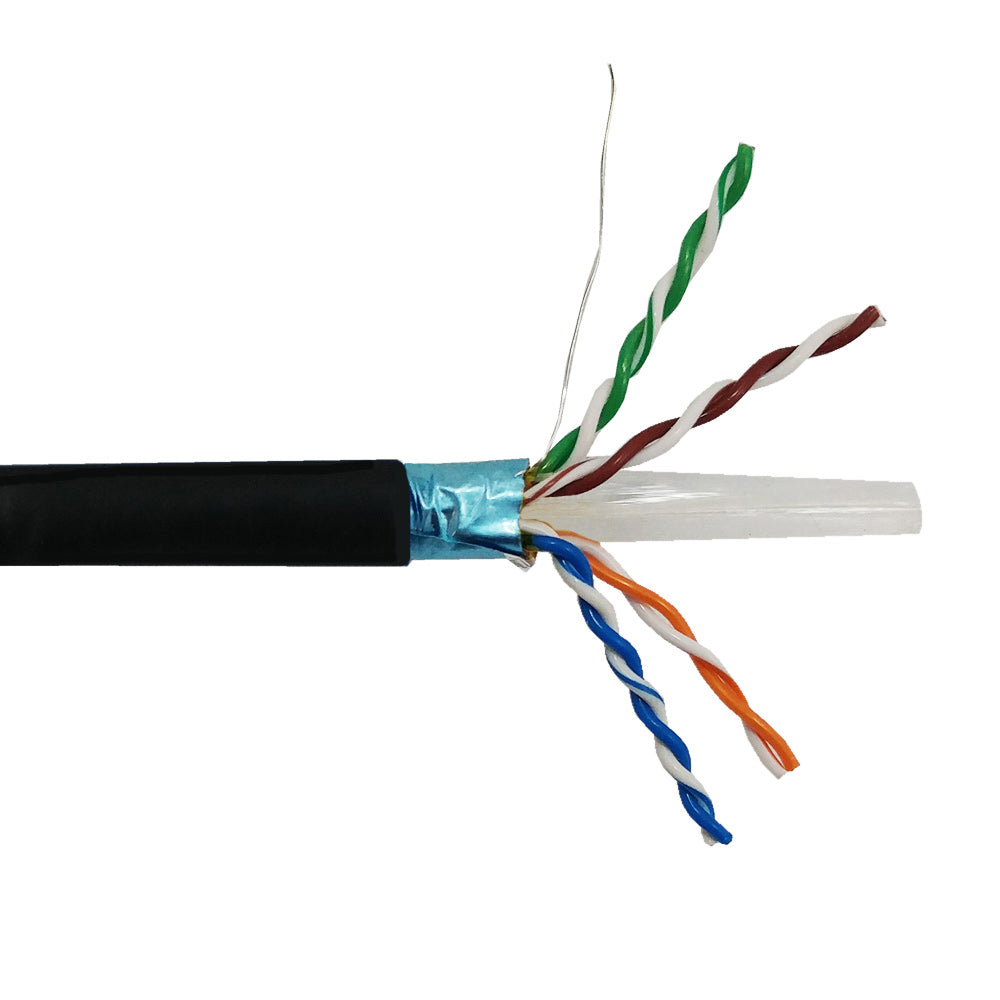

1000ft CAT6 550Mhz Solid Shielded F/UTP 23AWG CMP Plenum Bulk Cable - Black

Black

$561.25 CAD

1000ft CAT6 550Mhz Solid Shielded F/UTP 23AWG CMP Plenum Bulk Cable - Black

$561.25 CAD

This bulk plenum rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. It is typically used in a plenum environment as premise wiring and terminated from a patch panel to a Cat6 jack.

Physical Characteristics
Cable Length	1000 foot [305m]
Cable Diameter	7.45 mm
Number of Pairs	4 Pairs
Wire Gauge	23AWG Solid
Insulation	Outer Diameter: 0.0414" (1.05 +/- 0.5mm) PET (20/0.25mm)
Conductor Material	100% Bare Copper
Jacket Material	PVC - Polyvinyl Chloride
Jacket Rating	CMP/FT6[Plenum Rated]
Jacket Nominal Thickness	0.0197" (0.50mm)
Jacket Outer Diameter	0.268" +/- 0.012 (6.8 +/- 0.3mm)
Cable Shielding	100% Aluminum Foil Shield
Temperature Rating	75 deg C
Voltage	30V
Capacitance	5.6nF/100m .Nom
Characteristic Impedance	1-100MHz,100±15% 101-250MHz,100±22% 251-500MHz,100±25%
Velocity of Propogation	≥65%
DCR Conductor	9.38 Ohms/100m.Nom
D-C Resistance Unbalance:	≦5%
Performance
Fluke CAT6 Permalink	Pass
PoE Compliance
PoE / IEEE 802.3af Type 1	15.4W (37-57V)
PoE+ / IEEE 802.3at Type 2	30W (42.5-57V)
PoE++ / IEEE 802.3bt Type 3	60W (42.5-57V)
4PPoE / IEEE 802.3bt Type 4	100W (41.1-57V
Approvals
c(UL)	Compliant
Environmental
RoHS	Compliant
Packaging Information
Package Quantity	1
Product Weight	51 lbs [23.1 kg]
