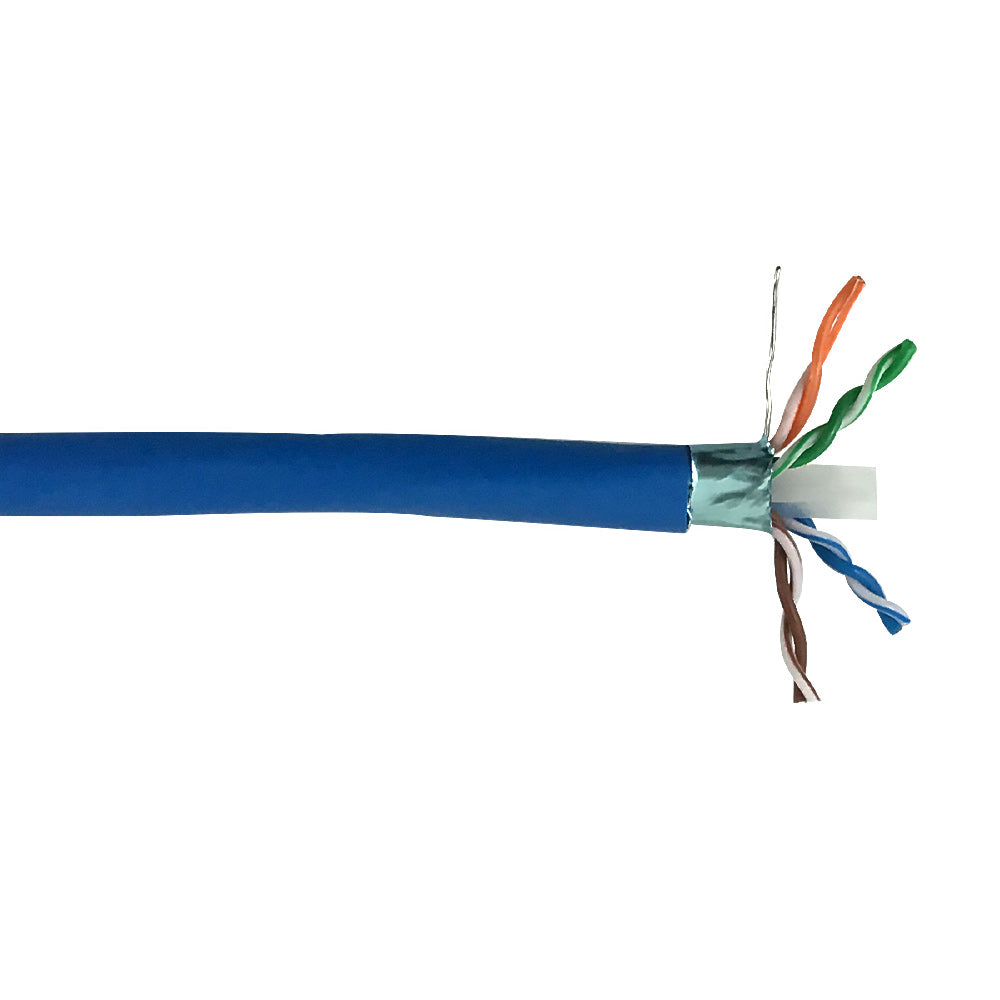

1000ft 4 Pair CAT6A 10Gig Solid Shielded CMR Bulk Cable – F/UTP - Blue

$466.25 CAD

1000ft 4 Pair CAT6A 10Gig Solid Shielded CMR Bulk Cable – F/UTP - Blue

Name: 1000ft 4 Pair CAT6A 10Gig Solid Shielded CMR Bulk Cable – F/UTP - Blue
Brand: NEAV Install
SKU: BK-C6ASL-4BLS-K
Price: 466.25 CAD
Availability: InStock

$466.25 CAD

This bulk shielded riser rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6a jack.

Physical Characteristics
Cable Length	1000 foot [305m]
Color	Blue
Overall Diameter	10.4mm
Number of Pairs	4 Pairs
Wire Gauge	23 AWG Solid
Insulation Material	HDPE
Conductor Material	100% Solid Bare Copper
Jacket Material	Flame Retardant PVC - Polyvinyl Chloride
Jacket Diameter	8.00mm
Spacer Thickness	1.00mm
Outer Sheath Thickness	0.45mm
Ripcord	Yes
Jacket Rating	CMR [Riser Rated]
Cable Shielding	100% AL-Foil Shield
Separator	Yes
Temperature Rating	Installation : 0°C to +75°C Operating : -20°C to +75°C
Mechanical Characteristics
Tensile Strength	Before : >= 13.8 Mpa
Elongation	Aging : >= 100%
Aging Condition	100°C x 168 hour After : >= 85% of unaged Aging : >= 50% of unaged
Electrical Characteristics
Maximum Conductor DC Resistance @ 20°C	≤ 9.38 Ω / 100 Meters
Maximum DC Resistance Unbalanced @ 20°C	≤ 5%
Capacitance Unbalance @ 20°C	≤ 330 pF / 100 Meters
Nominal of Propagation	69%
Mutual Capacitance @ 20°C	≤ 5.6 nF / 100 Meters
Max. Delay Skew @ 20°C	≤ 45 nS / 100 Meters
Compatibility
Compatible Plug	CN-RJ45C7S2-50
PoE Compliance
PoE / IEEE 802.3af Type 1	15.4W (37-57V)
PoE+ / IEEE 802.3at Type 2	30W (42.5-57V)
PoE++ / IEEE 802.3bt Type 3	60W (42.5-57V)
4PPoE / IEEE 802.3bt Type 4	100W (41.1-57V)
Approvals
c(ETL)us	Approved
Environmental
RoHS	Compliant
Packaging Information
Package Quantity	1
Product Weight	53 lbs
